Ingress

Ingress ¶

NodePort Service存在太多缺陷，不适合生产环境。LoadBlancer Service则不太灵活，比如针对微服务架构，那么不同服务是否需要多个负载均衡服务呢？我们还有其他选择么？有，那就是Ingress。

Ingress将集群外部的HTTP和HTTPS路由暴露给集群中的Service，相当于集群的入口，而入口规则由Ingress定义的规则来控制。

在使用Ingress之前，我们需要有一个Ingress Controller（入口控制器），例如ingress-nginx。Ingress负责定义抽象的规则，而Ingress Controller负责具体实现。通常情况下，Ingress搭配负载均衡一起使用。接下来，结合一个简单的微服务Demo来使用Ingress进行负载分发。

1.简介 ¶

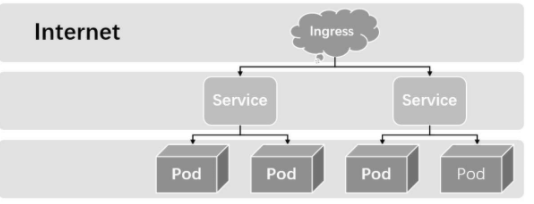

示意图如下：

2.Demo示例 ¶

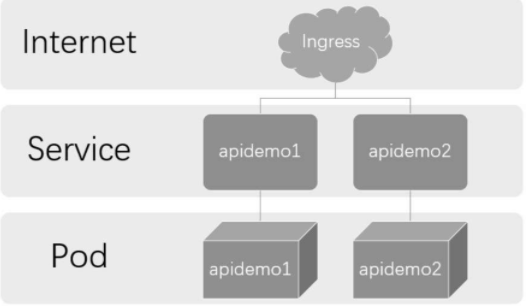

为了便于大家理解，我们先做一个简单的规划。整体规划图如图

Demo规划的整体步骤如下所示：

（1）开发两个应用，分别为apidemo1和apidemo2，并提供不同的接口服务。

（2）将两个应用分别部署到k8s集群，并且分别创建不同的Service。

（3）创建Ingress，配置不同的转发规则。

（4）为了访问方便，我们需要配置域名映射。

2.1 准备Demo并完成部署 ¶

apidemo1

apidemo1的访问路径为https://{hostname}:{port}/api/demo1，输出JSON“["value1", "value2"]”。

如下方式访问：
nodeIP:31010/api/demo1

apidemo2

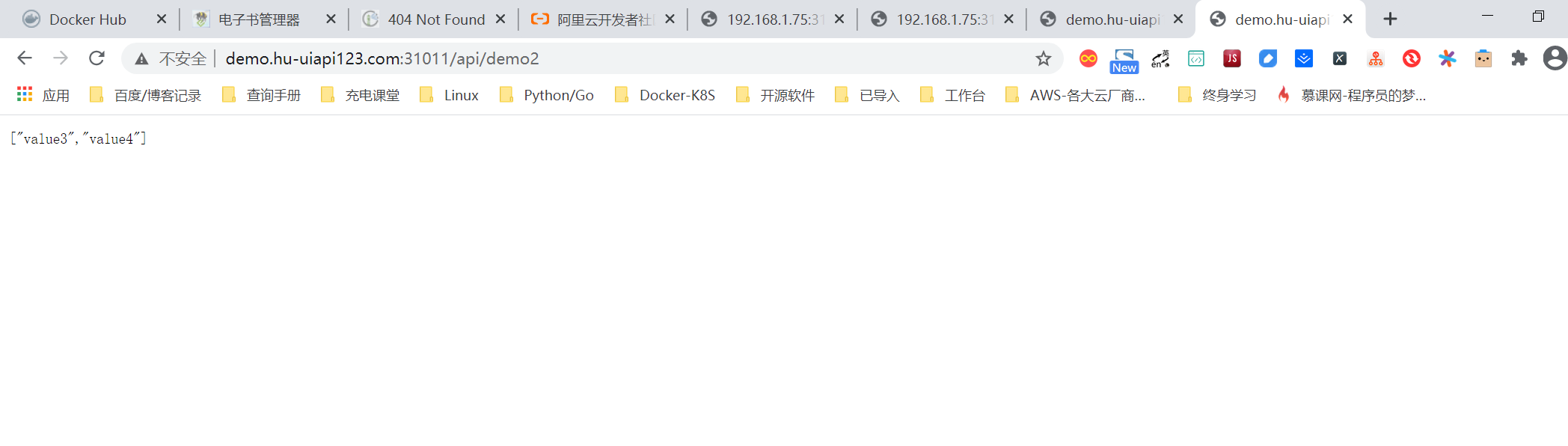

apidemo2的访问路径为https://{hostname}:{port}/api/demo2，输出JSON“["value3", "value4"]”。
如下方式访问：
nodeIP:31011/api/demo2

apidemo1和apidemo2均需支持80端口和443端口访问。

2.2 创建部署资源 ¶

demo1-deploy.yaml

---
apiVersion: apps/v1 #api版本
kind: Deployment #使用部署对象
metadata:
  labels: #标签列表
    app: apidemo1
  name: apidemo1 #部署名称
  namespace: demo-ingress-test01 #命名空间
spec:
  replicas: 1 #副本数
  selector: #选择器
    matchLabels:
      app: apidemo1
  template: #Pod模板
    metadata:
      labels:
        app: apidemo1
    spec:
      containers: #容器列表
      - env: #环境变量设置
        - name: PATH
          value: /usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
        - name: ASPNETCORE_URLS
          value: http://+:80
        - name: DOTNET_RUNNING_IN_CONTAINER
          value: "true"
        - name: ASPNETCORE_VERSION
          value: 2.2.6
        image: ccr.ccs.tencentyun.com/magicodes/apidemo1:latest #镜像地址
        imagePullPolicy: Always #镜像拉取策略，Always表示总是拉取最新镜像，IfNotPresent表示如果本地存在则不拉取，Never则表示只使用本地镜像
        name: apidemo1  #容器名称
        resources:  #资源限制
          limits: #最高限制
            cpu: 500m
            memory: 256Mi
          requests: #预分配
            cpu: 250m
            memory: 64Mi
        workingDir: /app  #工作目录
      dnsPolicy: ClusterFirst #DNS策略
      restartPolicy: Always #重启策略
      terminationGracePeriodSeconds: 30 #删除需要时间

---

apiVersion: v1
kind: Service #资源类型
metadata:
  name: apidemo1  #服务名称
  namespace: demo-ingress-test01
spec:
  ports: #端口列表
  - name: tcp-80-80
    nodePort: 31010 #节点端口
    port: 80  #当前端口
    protocol: TCP #协议
    targetPort: 80  #目标端口
  selector: #标签选择器
    app: apidemo1
  type: NodePort  #NodePort 类型的Service

2.3 创建服务资源 ¶

demo2-deploy.yaml

apiVersion: apps/v1 #api版本
kind: Deployment #使用部署对象
metadata:
  labels: #标签列表
    app: apidemo2
  name: apidemo2 #部署名称
  namespace: demo-ingress-test01 #命名空间
spec:
  replicas: 1 #副本数
  selector: #选择器
    matchLabels:
      app: apidemo2
  template: #Pod模板
    metadata:
      labels:
        app: apidemo2
    spec:
      containers: #容器列表
      - env: #环境变量设置
        - name: PATH
          value: /usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
        - name: ASPNETCORE_URLS
          value: http://+:80
        - name: DOTNET_RUNNING_IN_CONTAINER
          value: "true"
        - name: ASPNETCORE_VERSION
          value: 2.2.6
        image: ccr.ccs.tencentyun.com/magicodes/apidemo2:latest #镜像地址
        imagePullPolicy: Always #镜像拉取策略，Always表示总是拉取最新镜像，IfNotPresent表示如果本地存在则不拉取，Never则表示只使用本地镜像
        name: apidemo2  #容器名称
        resources:  #资源限制
          limits: #最高限制
            cpu: 500m
            memory: 256Mi
          requests: #预分配
            cpu: 250m
            memory: 64Mi
        workingDir: /app  #工作目录
      dnsPolicy: ClusterFirst #DNS策略
      restartPolicy: Always #重启策略
      terminationGracePeriodSeconds: 30 #删除需要时间
---
apiVersion: v1
kind: Service #资源类型
metadata:
  name: apidemo2  #服务名称
  namespace: demo-ingress-test01
spec:
  ports: #端口列表
  - name: tcp-80-80
    nodePort: 31011 #节点端口
    port: 80  #当前端口
    protocol: TCP #协议
    targetPort: 80  #目标端口
  selector: #标签选择器
    app: apidemo2
  type: NodePort  #NodePort 类型的Service

检查创建的资源信息

[root@ci-base ingress-demo1]# kubectl get ingress -n demo-ingress-test01
NAME   CLASS    HOSTS                                       ADDRESS   PORTS   AGE
demo   <none>   demo.hu-uiapi123.com,demo.hu-uiapi123.com             80      32s


[root@ci-base ingress-demo1]# kubectl get pods,svc -n demo-ingress-test01
NAME                            READY   STATUS    RESTARTS   AGE
pod/apidemo1-5d5d799856-nr7mn   1/1     Running   0          30m
pod/apidemo2-58b784fb9c-dz2lc   1/1     Running   0          27m

NAME               TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
service/apidemo1   NodePort   10.102.61.7     <none>        80:31010/TCP   30m
service/apidemo2   NodePort   10.111.218.86   <none>        80:31011/TCP   26m

2.4 创建Ingress资源并配置转发规则 ¶

接下来我们需要创建Ingress并配置好转发规则达成如下目标：

● 使用同一个IP访问多个API服务，这里对应的是“apidemo1”和“apidemo2”。

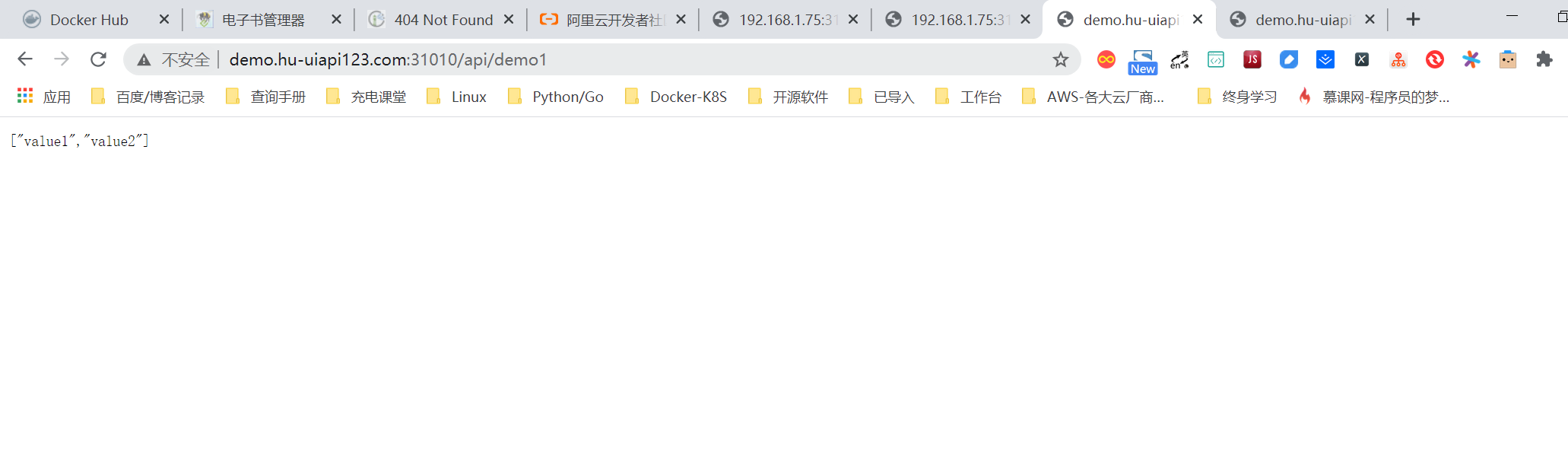

● 通过地址http://demo.hu-uiapi123.com:31010/api/demo1访问应用“apidemo1”。
● 通过地址http://demo.hu-uiapi123.com:31011/api/demo2访问应用“apidemo2”。

ingress-demo.yaml

# create ingree
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  annotations:
    kubernetes.io/ingress.class: qcloud #注释,不同的Ingress控制器支持不同的注释
    kubernetes.io/ingress.http-rules: '[{"host":"demo.hu-uiapi123.com","path":"/api/demo1","backend":{"serviceName":"apidemo1","servicePort":80}},{"host":"demo.hu-uiapi123.com","path":"/api/demo2","backend":{"serviceName":"apidemo2","servicePort":80}}]' #HTTP转发规则
    kubernetes.io/ingress.https-rules: "null"
    kubernetes.io/ingress.rule-mix: "true"
  name: demo
  namespace: demo-ingress-test01
spec:
  rules: #规则列表
  - host: demo.hu-uiapi123.com #主机名，可选。如不填写，则使用IP地址。
    http: #HTTP规则
      paths: #路径列表
      - backend: #后端配置
          serviceName: apidemo1 #后端服务名称
          servicePort: 80 #服务端口
        path: /api/demo1 #路径，同一个域名路径需不同
  - host: demo.hu-uiapi123.com #主机名，可选。如不填写，则使用IP地址。
    http:
      paths:
      - backend:
          serviceName: apidemo2 #后端服务名称
          servicePort: 80 #服务端口
        path: /api/demo2  #路径，同一个域名路径需不同

[root@ci-base ingress-demo1]# kubectl get ingress -n demo-ingress-test01
NAME   CLASS    HOSTS                                       ADDRESS   PORTS   AGE
demo   <none>   demo.hu-uiapi123.com,demo.hu-uiapi123.com             80      32s

3.Ingress实战 ¶

Ingress 是 Kubernetes 的一种 API 对象，将集群内部的 Service 通过 HTTP/HTTPS 方式暴露到集群外部，并通过规则定义 HTTP/HTTPS 的路由。Ingress 具备如下特性：集群外部可访问的 URL、负载均衡、SSL Termination、按域名路由（name-based virtual hosting）。

在 master 节点上执行

kubectl apply -f https://kuboard.cn/install-script/v1.17.x/nginx-ingress.yaml

配置域名解析

将域名 *.demo.yourdomain.com 解析到 demo-worker-a-2 的 IP 地址 z.z.z.z （也可以是 demo-worker-a-1 的地址 y.y.y.y）

验证配置

在浏览器访问 a.demo.yourdomain.com，将得到 404 NotFound 错误页面

3.1 应用yaml ¶

这里以flaskapp为例

3.1.1 创建namespace¶

flask-namespace.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: web-demo

3.1.2 创建deployment¶

flask-app.yaml

---
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    k8s.eip.work/displayName: flaskapp
    k8s.eip.work/ingress: 'false'
    k8s.eip.work/service: ClusterIP
    k8s.eip.work/workload: svc-flaskapp
  labels:
    k8s.eip.work/layer: svc
    k8s.eip.work/name: svc-flaskapp
  name: svc-flaskapp
  namespace: web-demo
spec:
  replicas: 1
  selector:
    matchLabels:
      k8s.eip.work/layer: svc
      k8s.eip.work/name: svc-flaskapp
  template:
    metadata:
      labels:
        k8s.eip.work/layer: svc
        k8s.eip.work/name: svc-flaskapp
    spec:
      containers:
        -
          image: jcdemo/flaskapp
          imagePullPolicy: Always
          name: flaskapp
      restartPolicy: Always

---
apiVersion: v1
kind: Service
metadata:
  annotations:
    k8s.eip.work/displayName: flaskapp
    k8s.eip.work/workload: svc-flaskapp
  labels:
    k8s.eip.work/layer: svc
    k8s.eip.work/name: svc-flaskapp
  name: svc-flaskapp
  namespace: web-demo
spec:
  ports:
    - name: wjaz2a
      nodePort: 0
      port: 5000
      protocol: TCP
      targetPort: 5000
  selector:
    k8s.eip.work/layer: svc
    k8s.eip.work/name: svc-flaskapp
  type: ClusterIP

3.1.3 创建Ingress¶

flask-ingress.yaml

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-flaskapp
  namespace: web-demo
  annotations:
    kubernetes.io/ingress.class: "Deployment-nginx"
spec:
  rules:
  - host: flaskapp.baidu.com
    http:
      paths:
      - backend:
          serviceName: svc-flaskapp
          servicePort: 5000

执行yaml

kubectl apply -f flask-app.yaml
kubectl apply -f flask-ingress.yaml

查看pod

[root@ci-base flask-app]# kubectl get pod -o wide -n web-demo
NAME                            READY   STATUS    RESTARTS   AGE   IP               NODE     NOMINATED NODE   READINESS GATES
svc-flaskapp-5c8c9797c6-fch6w   1/1     Running   0          39m   10.244.228.107   k8s-w1   <none>           <none>

查看svc

[root@ci-base flask-app]# kubectl get svc  -n web-demo
NAME           TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)    AGE
svc-flaskapp   ClusterIP   10.99.43.18   <none>        5000/TCP   39m

查看ingresses

[root@ci-base flask-app]# kubectl get ingresses.extensions -n web-demo
NAME           CLASS    HOSTS                ADDRESS   PORTS   AGE
svc-flaskapp   <none>   flaskapp.baidu.com             80      36m

3.1.4 设置域名解析¶

如果没有dns，修改windows 10的hosts，添加一条记录

192.168.1.75 flaskapp.baidu.com

注意：解析到任意node节点都可以！

访问页面

http://flaskapp.baidu.com/

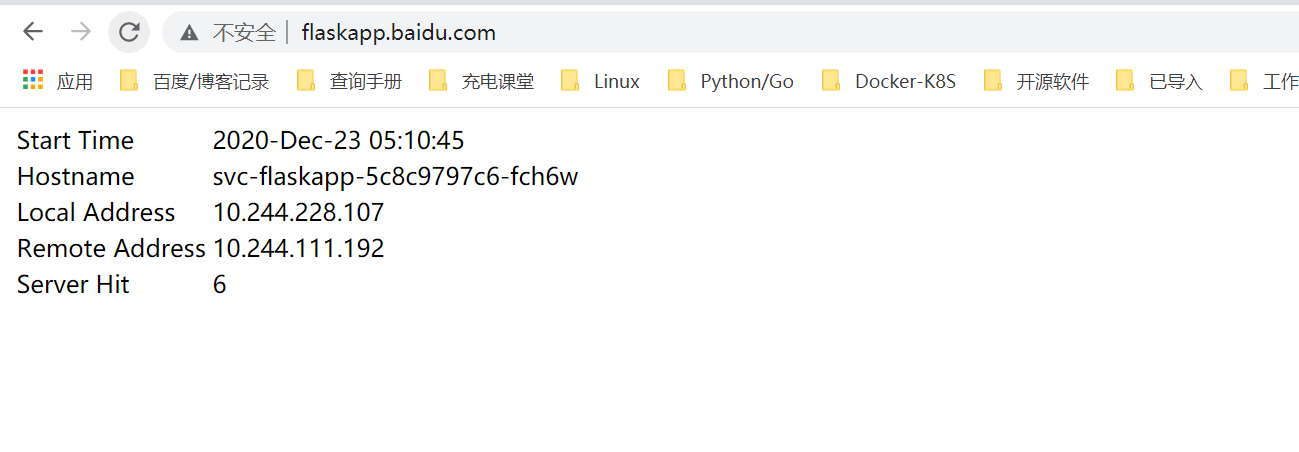

效果如下：

4. Ingress：HTTP 7层路由机制 ¶

4.1 应用yaml ¶

4.1.1 nginx 的deployment¶

nginx-deployment.yaml

---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    k8s.kuboard.cn/layer: cloud
    k8s.kuboard.cn/name: cloud-nginx

  name: cloud-nginx
  namespace: ingress-web-test
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s.kuboard.cn/layer: cloud
      k8s.kuboard.cn/name: cloud-nginx
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        k8s.kuboard.cn/layer: cloud
        k8s.kuboard.cn/name: cloud-nginx
    spec:
      containers:
        - image: nginx
          imagePullPolicy: Always
          name: nginx
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      terminationGracePeriodSeconds: 30


---
apiVersion: v1
kind: Service
metadata:
  annotations:
    k8s.kuboard.cn/workload: cloud-nginx
  labels:
    k8s.kuboard.cn/layer: cloud
    k8s.kuboard.cn/name: cloud-nginx
  name: cloud-nginx
  namespace: ingress-web-test

spec:
  ports:
    - name: m84rkz
      port: 8088
      protocol: TCP
      targetPort: 80
  selector:
    k8s.kuboard.cn/layer: cloud
    k8s.kuboard.cn/name: cloud-nginx
  sessionAffinity: None
  type: ClusterIP

4.1.2 http的deployment¶

http-deployment.yaml

---
apiVersion: apps/v1
kind: Deployment
metadata:

  labels:
    k8s.kuboard.cn/layer: cloud
    k8s.kuboard.cn/name: cloud-httpd

  name: cloud-httpd
  namespace: ingress-web-test

spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s.kuboard.cn/layer: cloud
      k8s.kuboard.cn/name: cloud-httpd
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        k8s.kuboard.cn/layer: cloud
        k8s.kuboard.cn/name: cloud-httpd
    spec:
      containers:
        - image: httpd
          imagePullPolicy: Always
          name: httpd
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      terminationGracePeriodSeconds: 30


---
apiVersion: v1
kind: Service
metadata:
  annotations:
    k8s.kuboard.cn/workload: cloud-httpd

  labels:
    k8s.kuboard.cn/layer: cloud
    k8s.kuboard.cn/name: cloud-httpd
  name: cloud-httpd
  namespace: ingress-web-test

spec:
  ports:
    - name: h2tji5
      port: 8089
      protocol: TCP
      targetPort: 80
  selector:
    k8s.kuboard.cn/layer: cloud
    k8s.kuboard.cn/name: cloud-httpd
  sessionAffinity: None
  type: ClusterIP

4.1.3 检查pod和sevice状态¶

// 应用yaml文件，生成deployment
[root@ci-base ingress-demo2]# kubectl create -f http-deployment.yaml nginx-deployment.yaml


[root@ci-base ingress-demo2]# kubectl get deployment -n ingress-web-test
NAME          READY   UP-TO-DATE   AVAILABLE   AGE
cloud-httpd   1/1     1            1           8m23s
cloud-nginx   1/1     1            1           5m13s
[root@ci-base ingress-demo2]# kubectl get pod,svc -n ingress-web-test
NAME                               READY   STATUS    RESTARTS   AGE
pod/cloud-httpd-6f74985dd7-fn2nk   1/1     Running   0          9m14s
pod/cloud-nginx-76cdc4498c-spzsh   1/1     Running   0          5m38s

NAME                  TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
service/cloud-httpd   ClusterIP   10.107.170.205   <none>        8089/TCP   8m48s
service/cloud-nginx   ClusterIP   10.103.8.159     <none>        8088/TCP   5m38s

4.1.4 node上访问nginx和http的server（ClusterIP）¶

[root@k8s-w1 ~]# curl 10.107.170.205:8089
<html><body><h1>It works!</h1></body></html>
[root@k8s-w1 ~]# curl 10.103.8.159:8088
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>

4.1.5 创建ingress规则¶

ingress.yaml

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-httpd
  namespace: ingress-web-test

spec:
  rules:
    - host: nginx.linux.com     #测试域名
      http:
        paths:
          - backend:
              serviceName: cloud-nginx
              servicePort: 8088

    - host: httpd.linux.com     #测试域名
      http:
        paths:
          - backend:
              serviceName: cloud-httpd
              servicePort: 8089

应用ingress规则

[root@ci-base ingress-demo2]# kubectl create -f ingress-web.yaml
[root@ci-base ingress-demo2]# kubectl get ingress -n ingress-web-test
NAME            CLASS    HOSTS                             ADDRESS   PORTS   AGE
ingress-httpd   <none>   nginx.linux.com,httpd.linux.com             80      2m4s

4.1.6 模拟dns解析¶

修改主机hosts文件

192.168.1.75 为node节点的IP信息

192.168.1.75 nginx.linux.com
192.168.1.75 httpd.linux.com

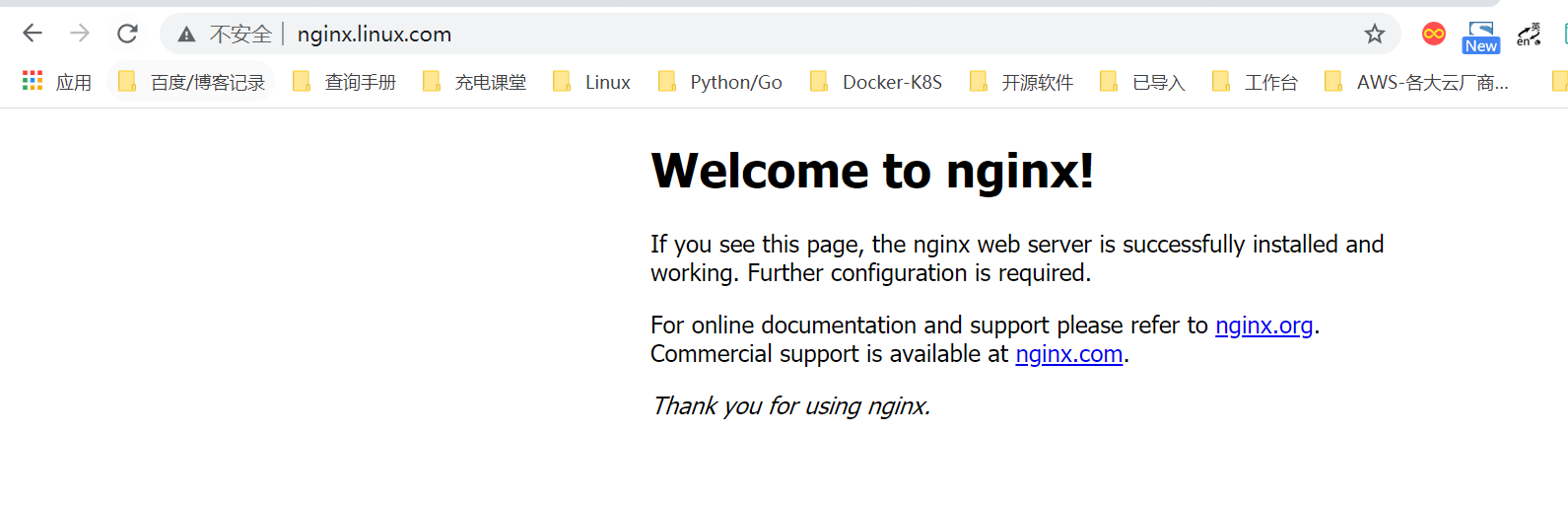

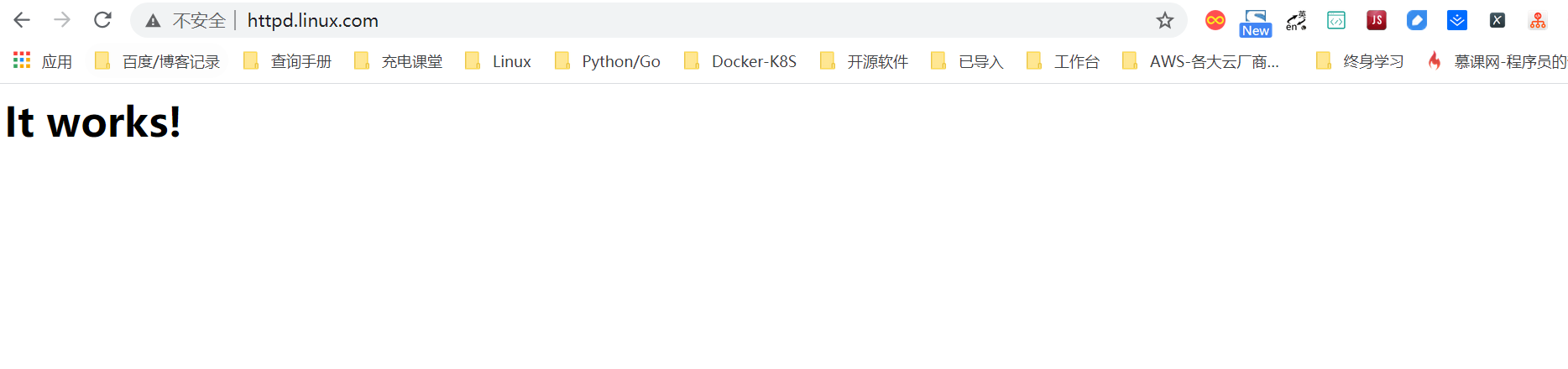

查看解析结果

5. 部署Ingress TLS ¶

创建ca-csr证书，运行命令如下：

[root@ci-base ingress-demo]# mkdir TLS-ingress
[root@ci-base ingress-demo]# cd TLS-ingress/
[root@ci-base TLS-ingress]# mkdir https
[root@ci-base TLS-ingress]# cd https/
[root@ci-base https]# cfssl print-defaults csr > ca-csr.json
[root@ci-base https]# cat ca-csr.json
{
    "CN": "hujianli",
    "hosts": [
        "example.net",
        "www.example.net"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "BeiJing",
            "L": "BeiJing"
        }
    ]
}

创建ca-config证书，命令如下：

[root@ci-base https]# cfssl print-defaults config >ca-config.json

生成证书，命令如下：

[root@ci-base https]# cfssl gencert --initca ca-csr.json|cfssljson -bare ca -
2020/12/24 22:45:53 [INFO] generating a new CA key and certificate from CSR
2020/12/24 22:45:53 [INFO] generate received request
2020/12/24 22:45:53 [INFO] received CSR
2020/12/24 22:45:53 [INFO] generating key: rsa-2048
2020/12/24 22:45:53 [INFO] encoded CSR
2020/12/24 22:45:53 [INFO] signed certificate with serial number 482207087097997528946866015254575296048002544496

[root@ci-base https]# ls
ca-config.json  ca.csr  ca-csr.json  ca-key.pem  ca.pem

为网站生成证书，命令如下：

[root@ci-base https]# cfssl print-defaults csr > server-csr.json

[root@ci-base https]# cat server-csr.json
{
    "CN": "www.hujianli.cn",
    "hosts": [
        "example.net",
        "www.example.net"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "BeiJing",
            "L": "BeiJing"
        }
    ]
}

生成server-csr证书，命令如下：

[root@ci-base https]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem --config=ca-config.json --profile=www server-csr.json | cfssljson -bare server
2020/12/24 22:49:46 [INFO] generate received request
2020/12/24 22:49:46 [INFO] received CSR
2020/12/24 22:49:46 [INFO] generating key: rsa-2048
2020/12/24 22:49:46 [INFO] encoded CSR
2020/12/24 22:49:46 [INFO] signed certificate with serial number 412965705693189328630544149894240208611584069175

[root@ci-base https]# ls server*
server.csr  server-csr.json  server-key.pem  server.pem

将ca证书和server证书导入集群管理中，方便日常工作使用，命令如下：

[root@ci-base https]# kubectl create secret tls hujianli-https --key server-key.pem --cert server.pem
secret/hujianli-https created

使用kube get secret 命令进行查看，如下：

[root@ci-base https]# kubectl get secret
NAME                  TYPE                                  DATA   AGE
default-token-dmqdh   kubernetes.io/service-account-token   3      59d
hujianli-https        kubernetes.io/tls                     2      72s

web-deployment.yaml

kind: Deployment
apiVersion: apps/v1
metadata:
  name: svc1
  namespace: web-demo
spec:
  replicas: 1
  selector: #选择器
    matchLabels:
      app: svc1
  template:
    metadata:
      labels:
        app: svc1
    spec:
      containers:
        - name: svc1
          image: cnych/example-web-service
          env:
            - name: APP_SVC
              value: svc1
          ports:
            - containerPort: 8080
              protocol: TCP

---
kind: Deployment
apiVersion: apps/v1
metadata:
  name: svc2
  namespace: web-demo
spec:
  replicas: 1
  selector: #选择器
    matchLabels:
      app: svc2
  template:
    metadata:
      labels:
        app: svc2
    spec:
      containers:
        - name: svc2
          image: cnych/example-web-service
          env:
            - name: APP_SVC
              value: svc2
          ports:
            - containerPort: 8080
              protocol: TCP

---
kind: Deployment
apiVersion: apps/v1
metadata:
  name: svc3
  namespace: web-demo
spec:
  replicas: 1
  selector: #选择器
    matchLabels:
      app: svc3
  template:
    metadata:
      labels:
        app: svc3
    spec:
      containers:
        - name: svc3
          image: cnych/example-web-service
          env:
            - name: APP_SVC
              value: svc3
          ports:
            - containerPort: 8080
              protocol: TCP


---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: svc1
  name: svc1
  namespace: web-demo
spec:
  type: ClusterIP
  ports:
    - port: 8080
      name: http
  selector:
    app: svc1

---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: svc2
  name: svc2
  namespace: web-demo
spec:
  type: ClusterIP
  ports:
    - port: 8080
      name: http
  selector:
    app: svc2

---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: svc3
  name: svc3
  namespace: web-demo
spec:
  type: ClusterIP
  ports:
    - port: 8080
      name: http
  selector:
    app: svc3

web-tls-ingress.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: tls-ingress
  namespace: web-demo

spec:
  tls:
  - hosts:
    - www.hujianli.cn
    secretName: web-https


  rules:
  - host: www.hujianli.cn
    http:
      paths:
      - path: /s1
        backend:
          serviceName: svc1
          servicePort: 8080
      - path: /s2
        backend:
          serviceName: svc2
          servicePort: 8080
      - path: /
        backend:
          serviceName: svc3
          servicePort: 8080

创建https pod，命令如下：

[root@ci-base TLS-ingress]# kubectl create -f web-deploy.yaml
deployment.apps/svc1 created
deployment.apps/svc2 created
deployment.apps/svc3 created
service/svc1 created
service/svc2 created
service/svc3 created




[root@ci-base TLS-ingress]# kubectl get pod -n web-demo
NAME                            READY   STATUS    RESTARTS   AGE
svc-flaskapp-5c8c9797c6-6n62n   1/1     Running   0          56m
svc1-5ff98455f6-9n89t           1/1     Running   0          43s
svc2-678c5fb65-s829b            1/1     Running   0          43s
svc3-55569d594-qw2r8            1/1     Running   0          43s

[root@ci-base TLS-ingress]# kubectl get svc -n web-demo
NAME   TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
svc1   ClusterIP   10.106.12.22     <none>        8080/TCP   14s
svc2   ClusterIP   10.97.145.250    <none>        8080/TCP   14s
svc3   ClusterIP   10.108.173.197   <none>        8080/TCP   14s

创建好后，查看Ingress如下

[root@ci-base TLS-ingress]# kubectl create -f web-ingress.yaml
ingress.networking.k8s.io/example-tls-ingress created

[root@ci-base TLS-ingress]# kubectl get ingress -n web-demo
NAME                  CLASS    HOSTS             ADDRESS   PORTS     AGE
example-tls-ingress   <none>   www.hujianli.cn             80, 443   15s

在本地的host文件中设置IP地址和需要访问的域名，如下：

192.168.1.75为node节点的IP地址

192.168.1.75 www.hujianli.cn

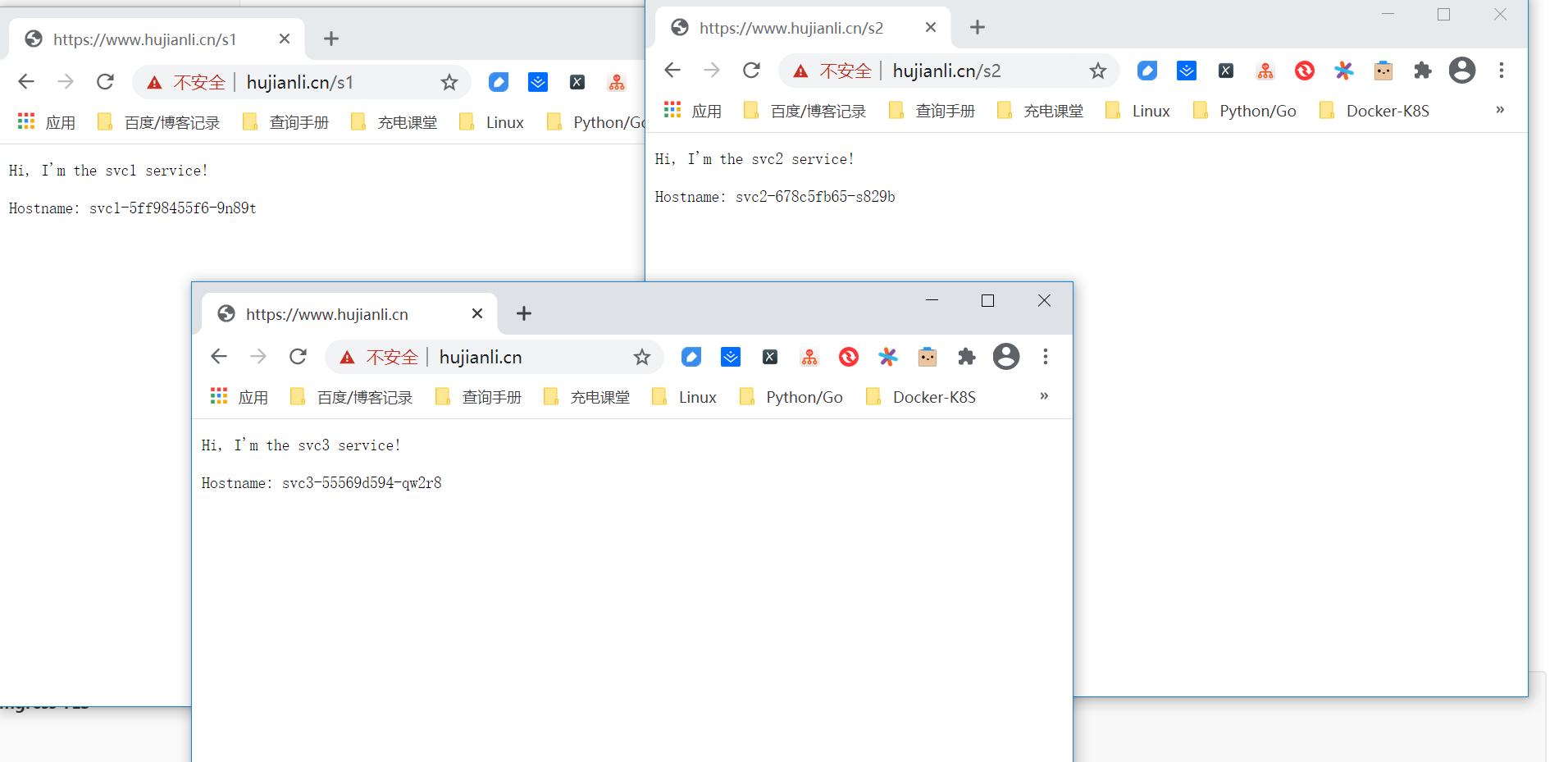

打开浏览器访问www.hujianli.cn,会访问Ingress Nginx页面，如下：

参考文献：

https://www.cnblogs.com/fuyuteng/p/11041214.html

小提示：

附上一个创建ca证书的脚本

certs.sh

cat > ca-config.json <<EOF
{
  "signing": {
    "default": {
      "expiry": "87600h"
    },
    "profiles": {
      "kubernetes": {
         "expiry": "87600h",
         "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ]
      }
    }
  }
}
EOF

cat > ca-csr.json <<EOF
{
    "CN": "kubernetes",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Beijing",
            "ST": "Beijing"
        }
    ]
}
EOF

cfssl gencert -initca ca-csr.json | cfssljson -bare ca -

cat > sslexample.foo.com-csr.json <<EOF
{
  "CN": "sslexample.foo.com",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "L": "BeiJing",
      "ST": "BeiJing"
    }
  ]
}
EOF

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes sslexample.foo.com-csr.json | cfssljson -bare sslexample.foo.com

#kubectl create secret tls blog-ctnrs-com --cert=blog.ctnrs.com.pem --key=blog.ctnrs.com-key.pem

6. 相关参考文献 ¶

https://www.cloudcared.cn/3113.html
